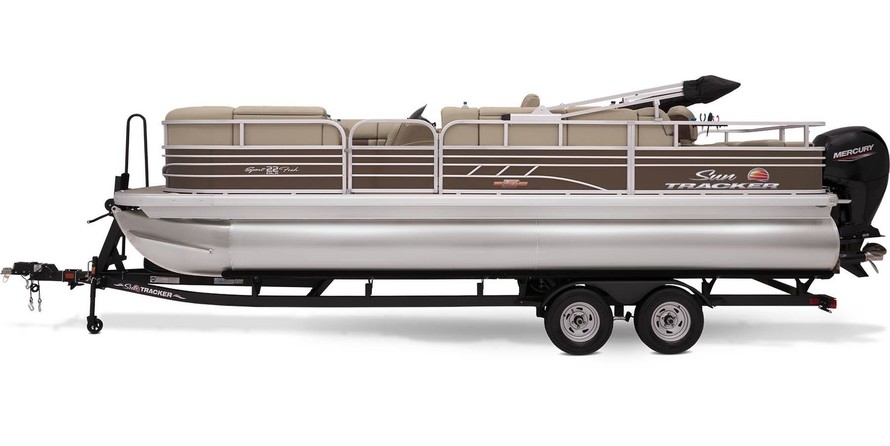

Length:24' 2"
Deck Length: 22' 1"
Deck Width: 8' 6"
Max. Recommended HP: 150 HP
Fuel Capacity: 32.1 gal.
Pontoon Log Length: 22' 3"
Pontoon Log Diameter: 24"
Pontoon Log Material: 0.08 5052 marine alloy
Max. Person Capacity: 10 persons
Max. Person Weight: 1450 lbs.
Max. Person, Motor & Gear Weight: 2115 lbs.
Interior Depth: 26"
Average Dry Weight: 2380 lbs.
Average Package Weight: 4215 lbs.
Package Height: 9' 0"
Package Width: 8' 6"
Towing Length: 32' 4"
Storage Length: 32' 4"
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty
NMMA® certified
10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

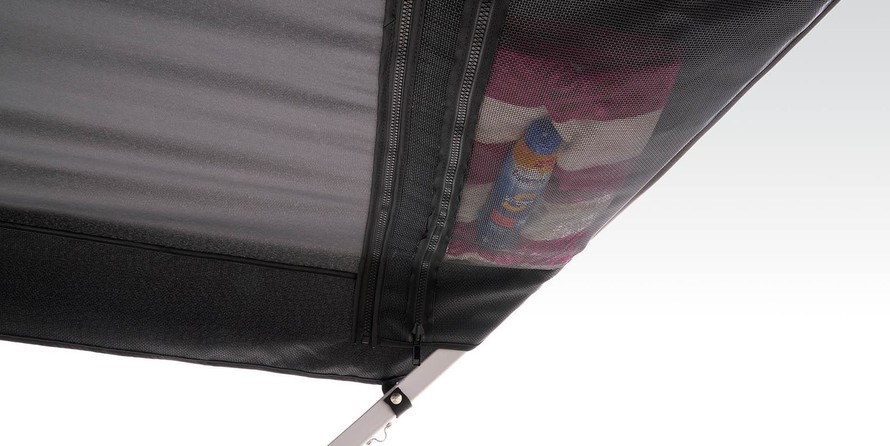

Storage pockets in Bimini top
Nylon gate latches & heavy-duty hinges that open inward
Port & starboard LED navigation lights
Bimini-mounted anchor/navigation light
Mooring eye on starboard side for tie off

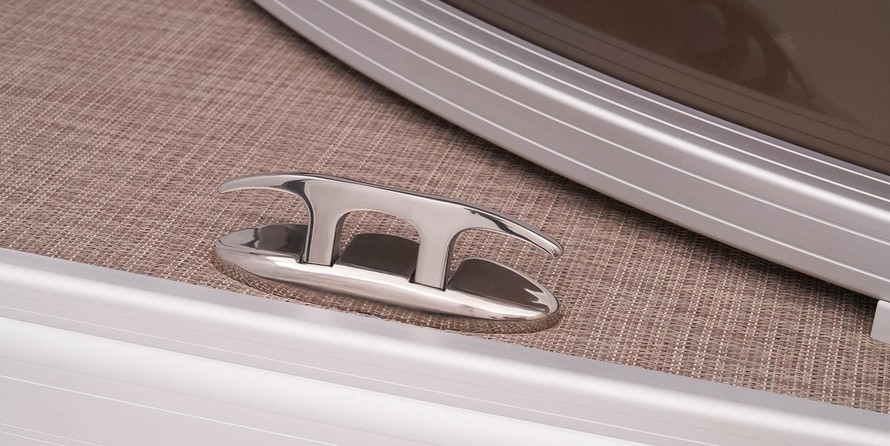

Four 4.5" (11.43 cm) fold-down mooring cleats
Motor-stop safety lanyard
Fire extinguisher
Horn
Livewell System

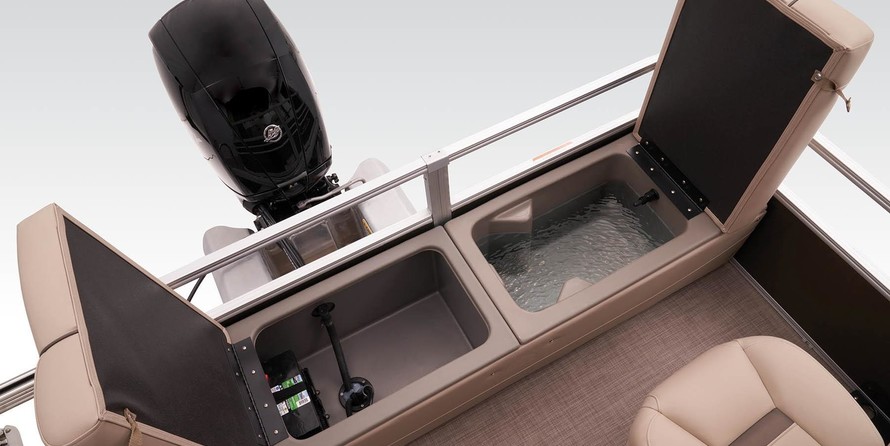

Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

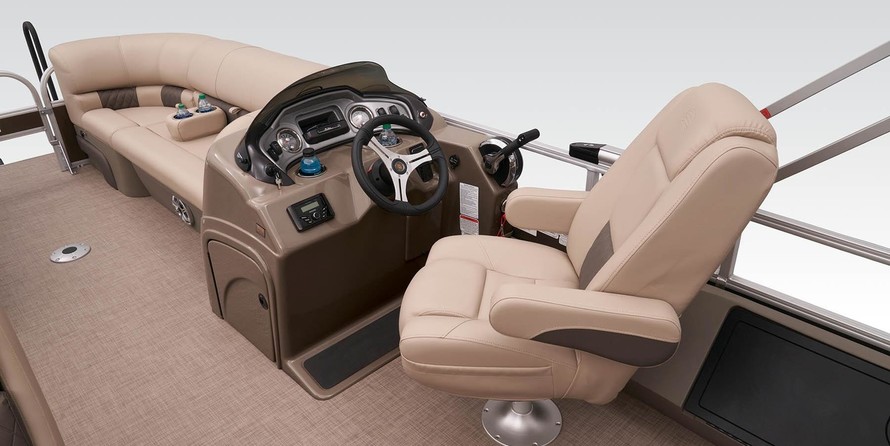

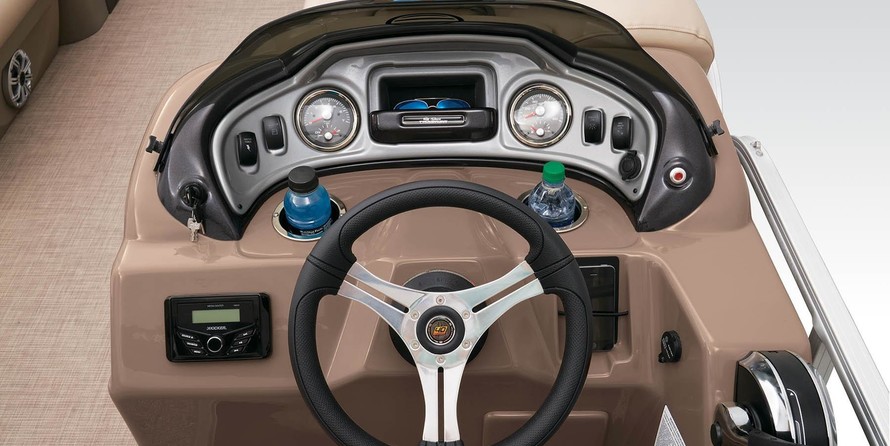

Console

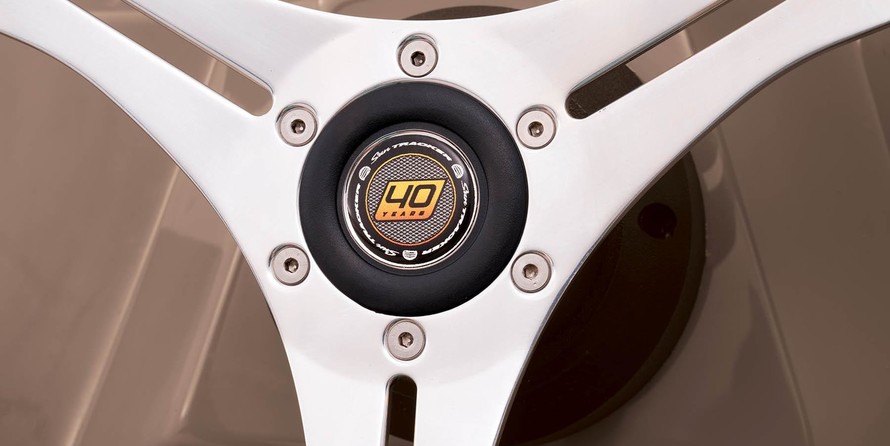

Deluxe soft-touch sport steering wheel
4:2 ratio no-feedback steering for responsive, easy turning
Wraparound sport console shroud & tinted, removable windscreen

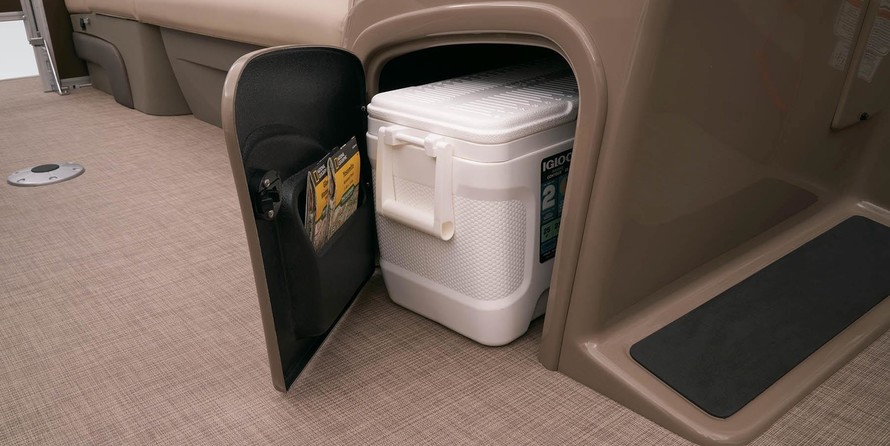

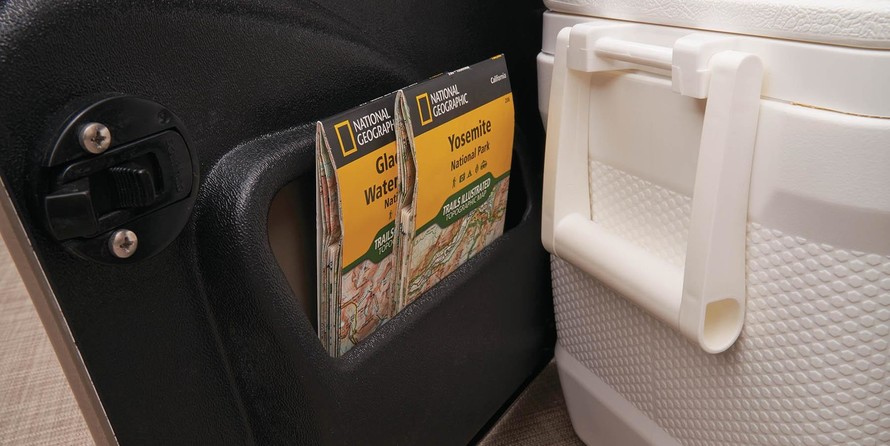

Below-console cooler/storage space w/door & integrated pouch
Small items tray
Drink holders
Built-in footrest w/non-skid pad

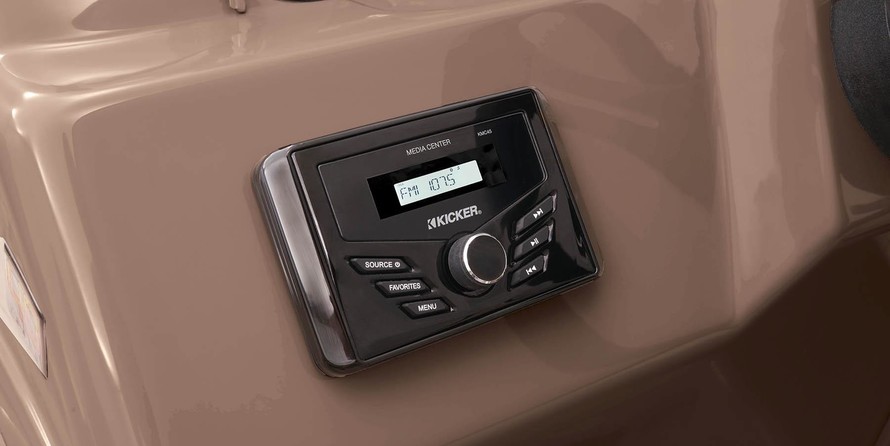

AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 NEW upholstery speakers
USB/3.5 mm auxiliary input ports on console for direct stereo connection
Tachometer, trim meter/speedometer & fuel & hour gauges
Lighted rocker switches
Ergonomically positioned Mercury® binnacle control box w/trim
12V outlet
Dark console color
Interior

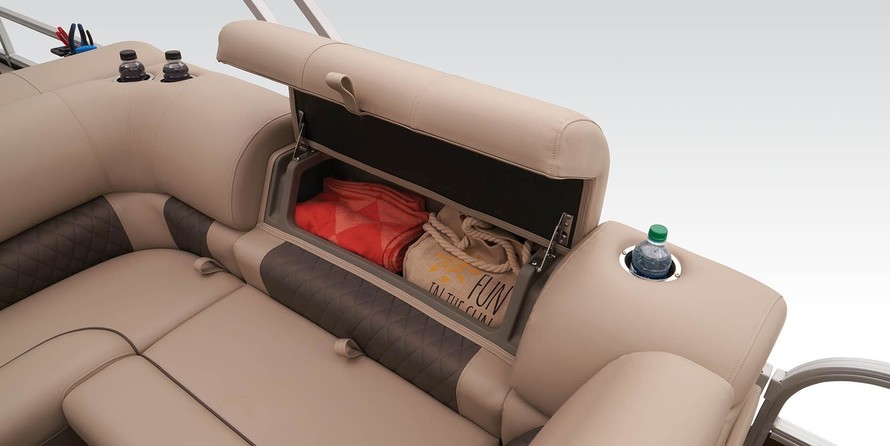

The patented STOW MORE™ system features an added compartment in the seat back for increased storage
Large bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity
Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals

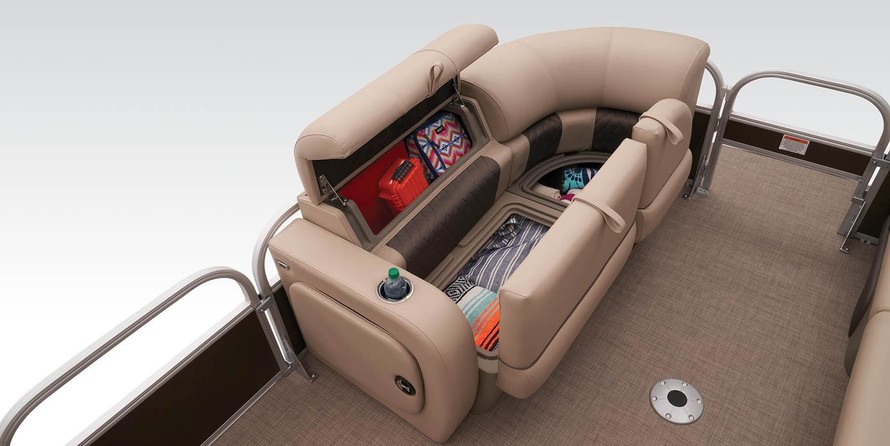

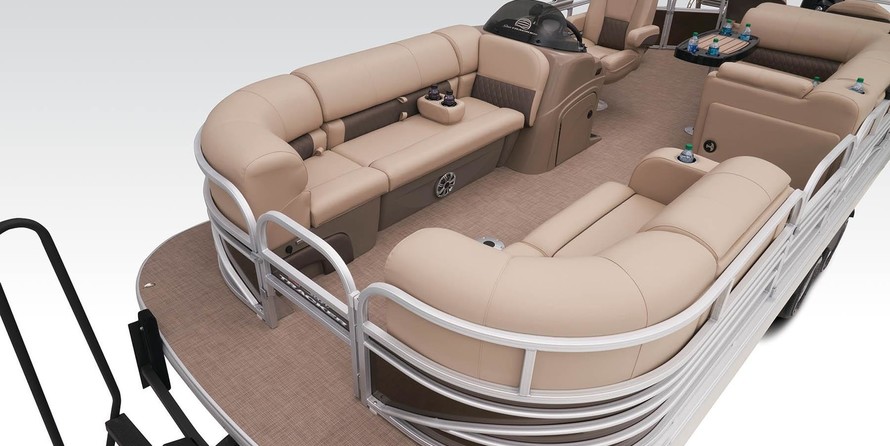

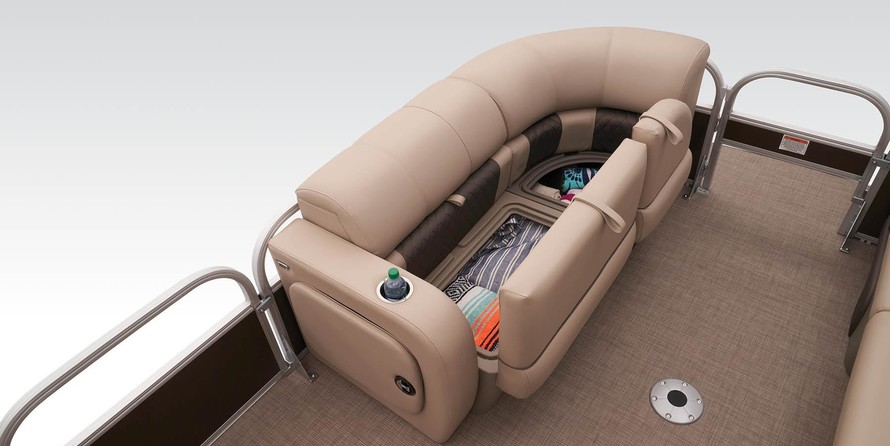

Bow port couch w/STOW MORE™ system, underseat storage & armrest w/drink holder

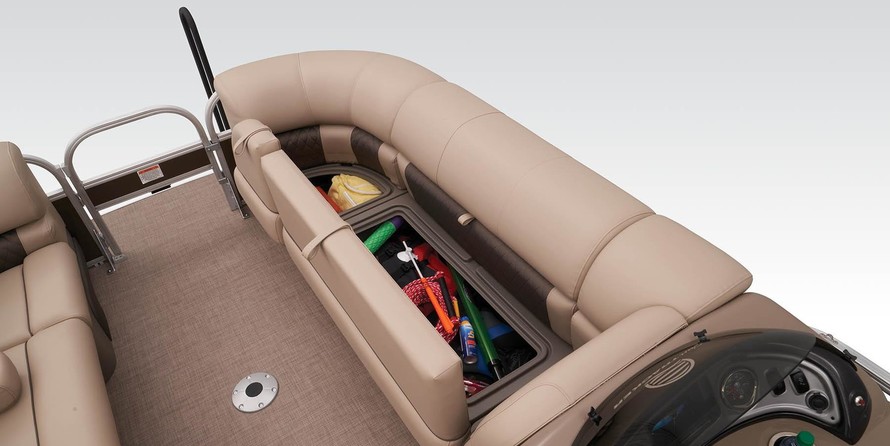

Bow starboard couch w/STOW MORE™ system & underseat storage

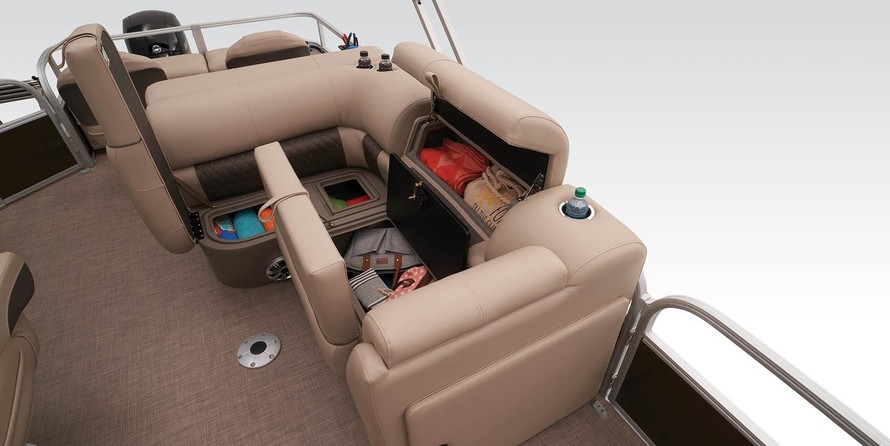

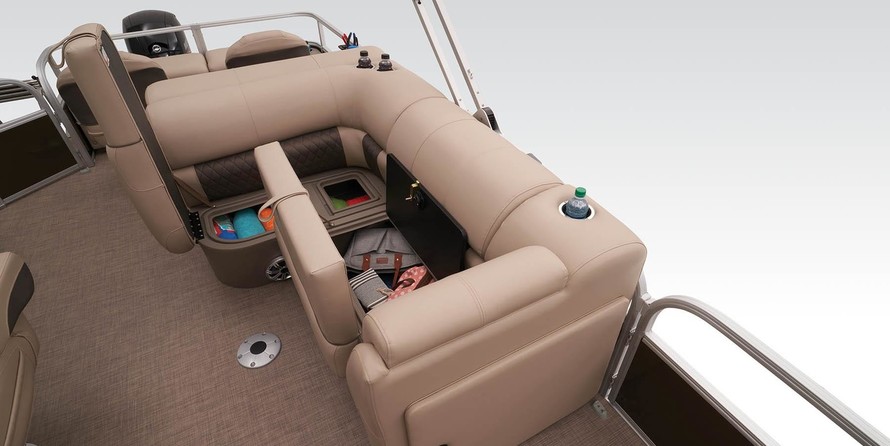

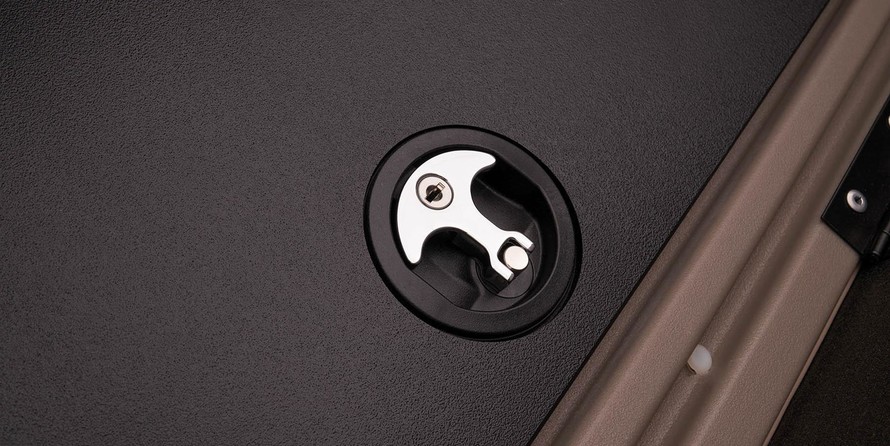

Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & arm
High-back swiveling helm bucket seat, reclining & w/self-leveling arms

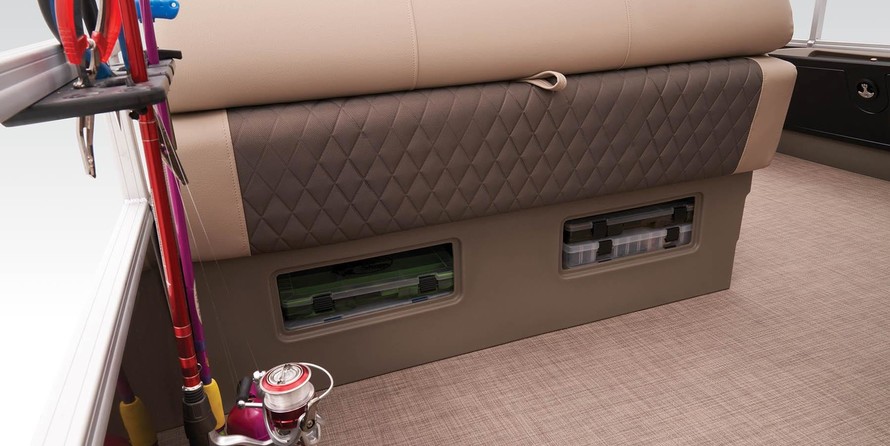

Rear-facing tackle storage in aft L-lounge

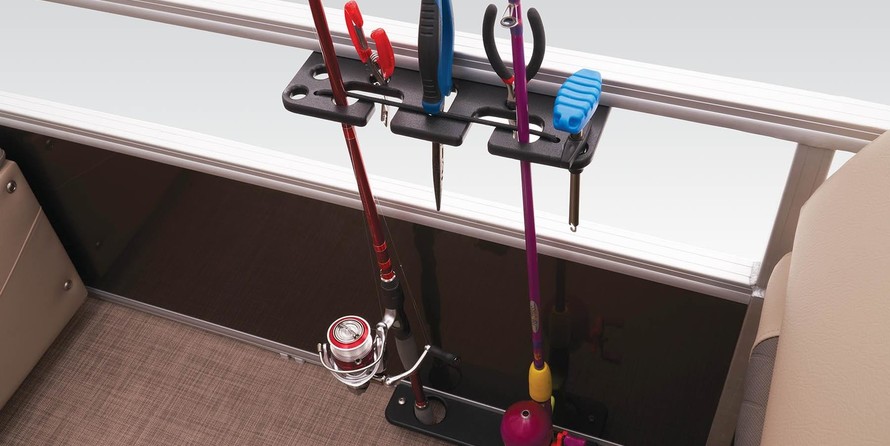

Aft rail-mounted vertical rod & tool holders

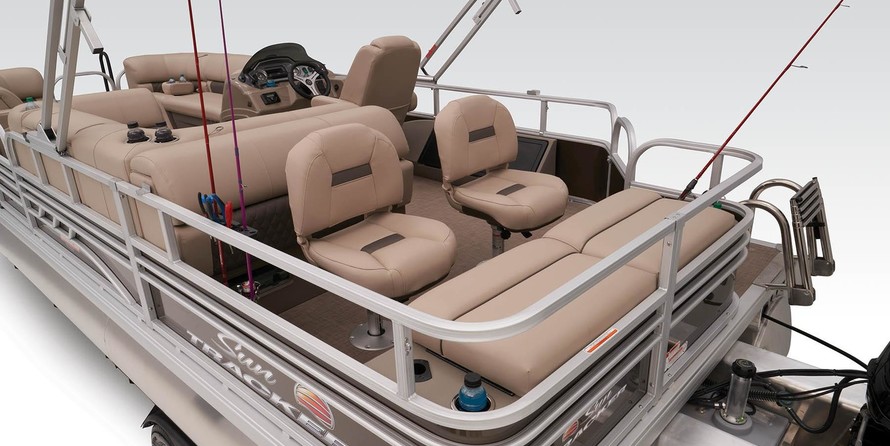

Aft fishing deck w/2 removable folding fishing chairs

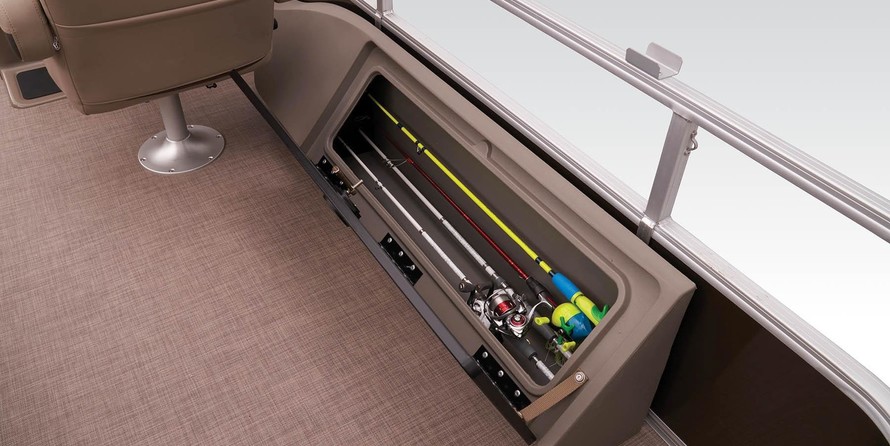

Molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
Woven 16-oz. (.45 kg) marine-grade flooring throughout
Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

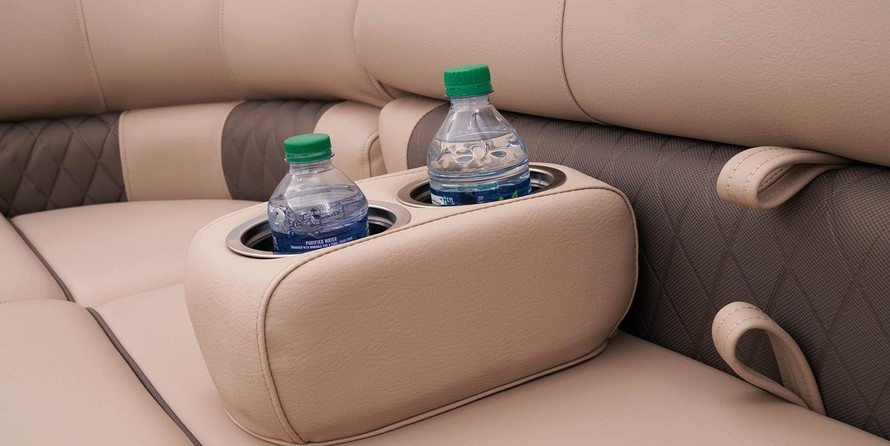

2 movable drink holders/armrests
Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
Performance

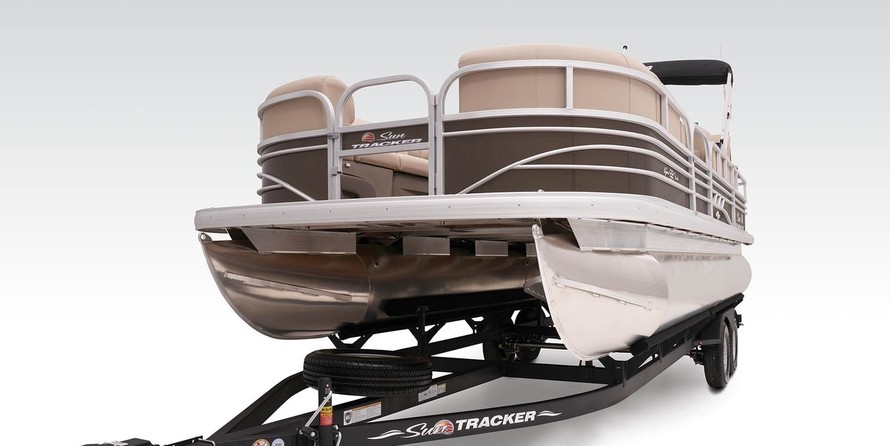

Nose cone & motor pod wave/spray deflectors for a drier ride
Factory-matched aluminum propeller
Construction & Exterior
Color: NEW Black or NEW Caribou fencing
Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
Rotomolded couches & backs for furniture w/Diamante Pepper accent
Fishing seats w/Diamante Pepper accent
Heavy-duty bow U-channel reinforcement behind deck trim
24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
1-piece full-length M-bracket deck supports
Protective exoskeleton rail & panel system for durability & a quieter ride
High-sheen fence finish for long-lasting good looks
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
Extruded anodized aluminum deck edging w/polished aft corner covers

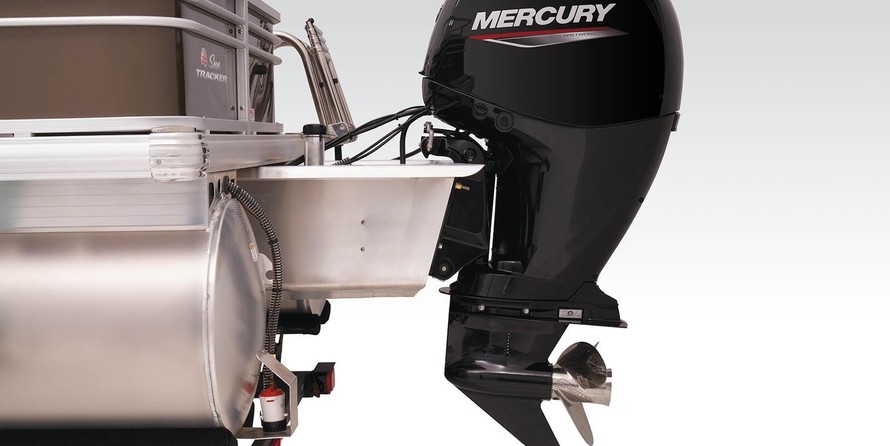

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
Stainless or coated corrosion-resistant fasteners
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
Elevated fence panels for deck drainage & ventilation
Sound- & vibration-deadening fence insulation for a quiet ride
Box-beam all-aluminum transom for strength & longevity
Port wheelchair-access gate

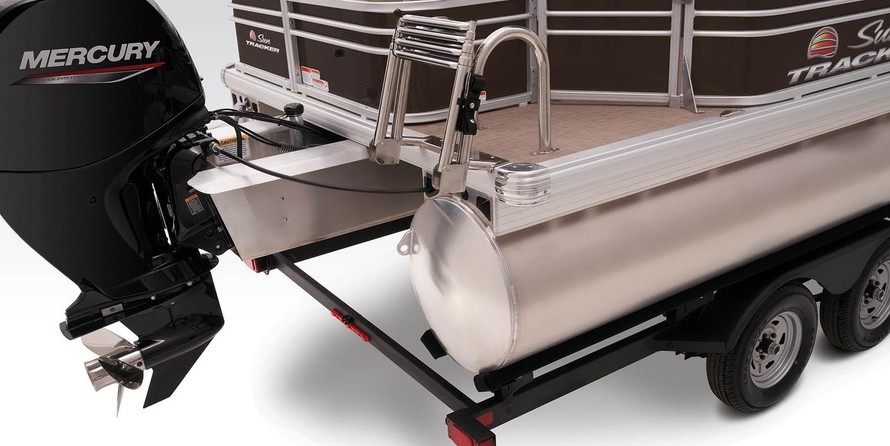

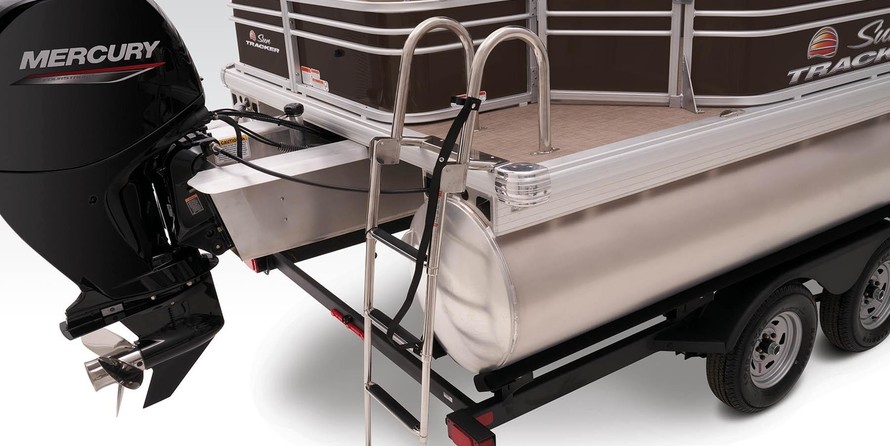

Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
Electrical

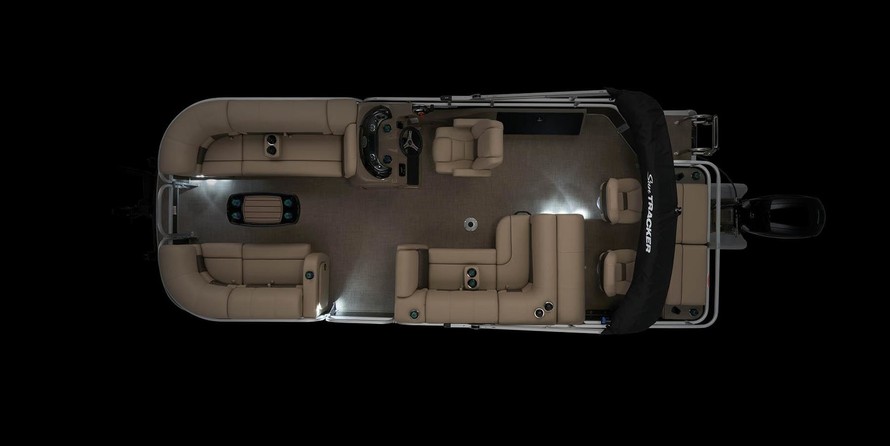

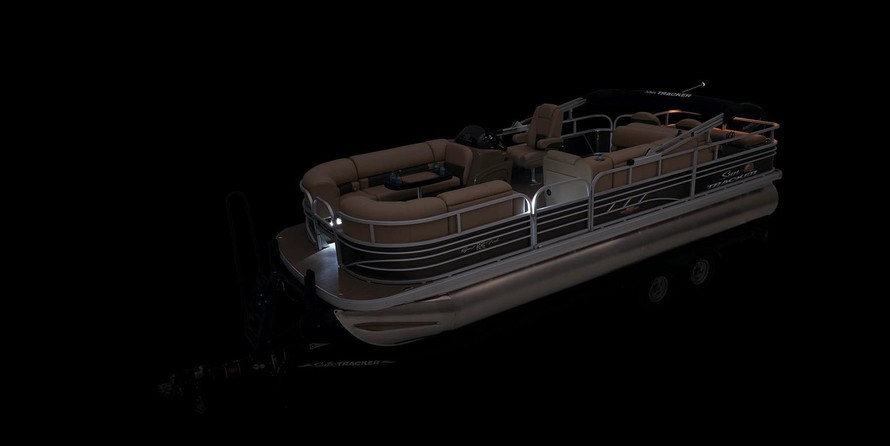

Interior courtesy lighting
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

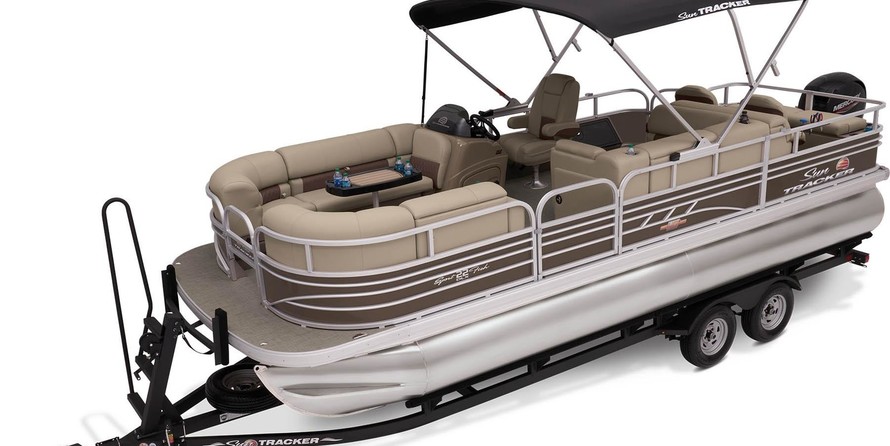

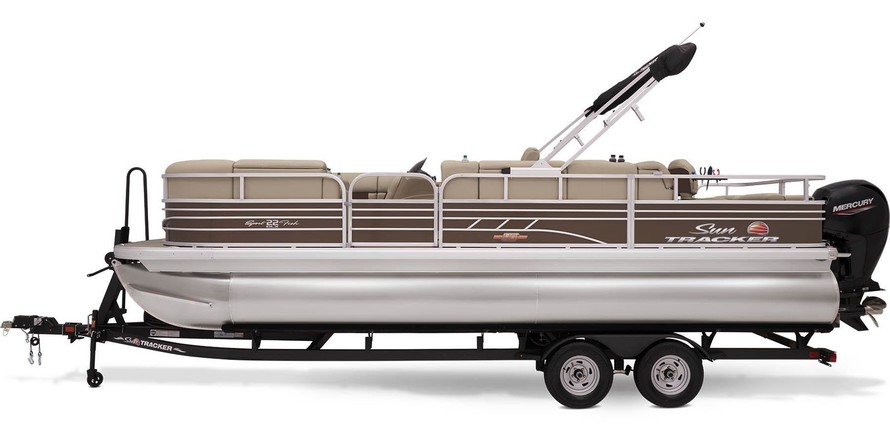

At SUN TRACKER®, we know that your family/crew is interested in doing a variety of activities, from fishing to lounging to reading—at the same time! That’s why we created the SPORTFISH™ 22 DLX, so you can have the best of everything at once.
Want to fish? The aft deck is laid out with dual fishing chairs, an aerated livewell (complete with a lift-out bait bucket) and rod storage (including a lockable rod box nearby). Want to relax in the shade? The Bimini top is 10’ when deployed to provide even more shade, and it features a new powered system for easy setup. Want to relax in the sun with a glass of lemonade at hand? The dual bow lounges are perfect for lying back, and the bow table mount provides a convenient spot for drinks and snacks.
Regardless the activity, everyone will appreciate the STOW MORE™ seat storage system, cooler storage and new stereo. All standard on the SPORTFISH 22 DLX.
