MAIN CHARACTERISTICS
Builder: Custom Line S.p.A. (Ferretti Group – Italy)
Model: Custom Line Navetta 30
Hull Number: #16
Naval Architecture: Ferretti Group’s Product Strategy and Engineering Team
Exterior Designer: Filippo Salvetti
Interior Designers: Antonio Citterio & Patricia Viel
Type: Motor Yacht / Tri-deck Yacht
Hull Type: Displacement
Hull Material: GRP
Superstructure Material: GRP
Decks: Teak
Year: 2022
Overall Length: 28.43 m (93' 3")
Hull Length: 23.98 m (78' 8")
Waterline Length: 23.91 m (78' 5")
Beam: 7.31 m (24')
Draught: 2.20 m (7' 3")
Gross Tonnage: 199 GT
Displacement (full load): 135,000 kg (297,624 lb)
Displacement (1/3 load): 120,000 kg (264,555 lb)
Displacement (light load): 115,000 kg (253,532 lb)
Certification Design: Category "A" 2013/53/EU Directive
Class: RINA Certifications modules B + F + Aa (sound emission)
Flag of Registry: Jersey, United Kingdom
Location: Zadar, Croatia
PROPULSION
Type / Fuel: Twin Screw Diesel
Main Engines: 2 x 1000 Hp (735 kW) MAN V8-1000 @ 2300 RPM
Engine Hours: 350 h (Nov. 2022)
Maximum Speed: 15 knots
Cruise Speed: 13 knots
Range: Up to 850 NM @ Cruise Speed
Economical Cruising Speed: 10 knots
Range: Up to 2000 NM @ Economical Cruise Speed
Drives: Direct Shaft
TANKAGE
Fuel Capacity: 14,500 l (3,830 US Gals.)
Fresh Water Capacity: 2,500 l (660 US Gals.)
Grey Water Capacity: 900 l (238 US Gals.)
Black Water Capacity: 900 l (238 US Gals.)
ACCOMMODATION
11 Guests in 5 en-suite Staterooms
Guest Cabin Configuration:
Crew Accommodation:

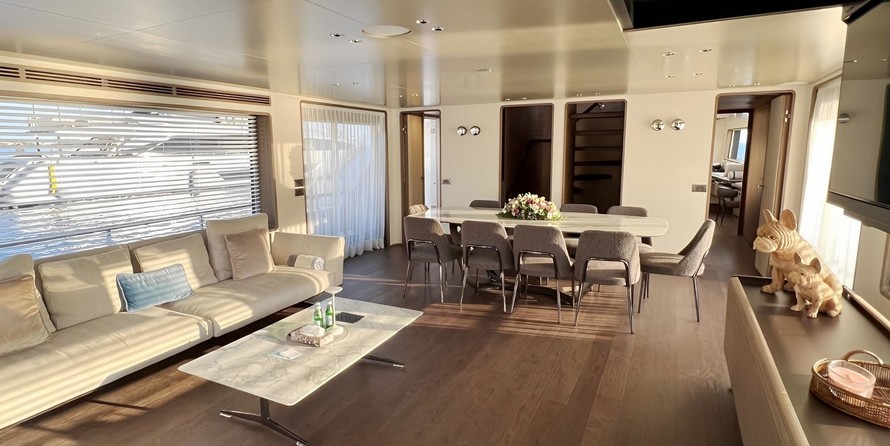

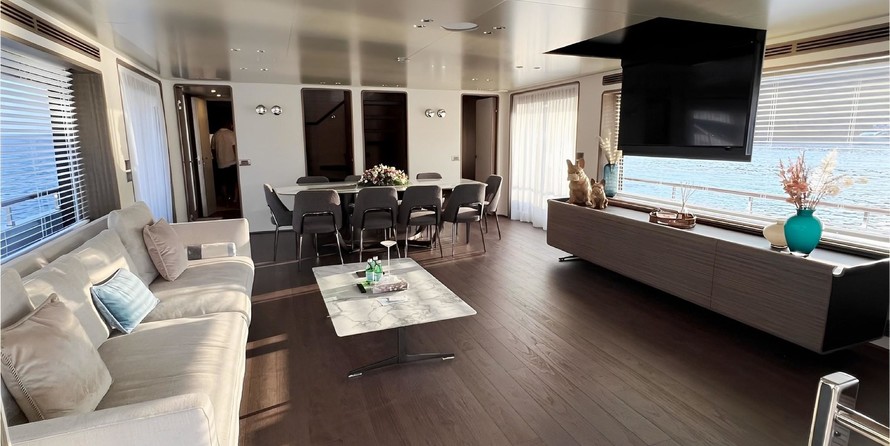

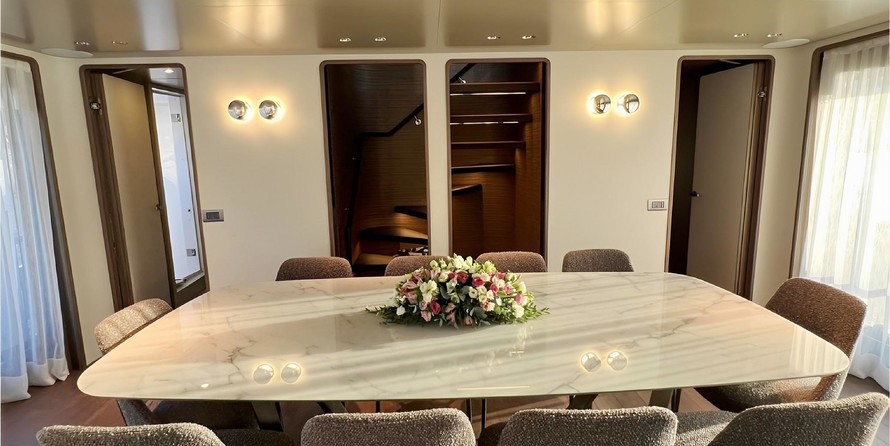

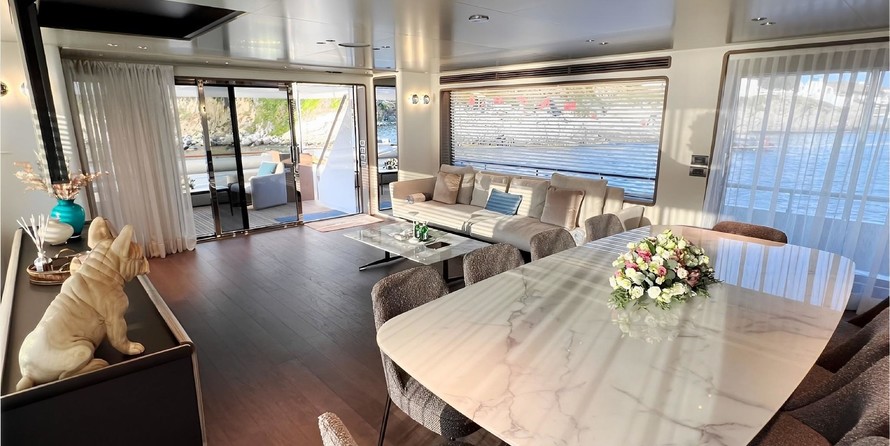

Main deck with saloon, formal dining, day-head and fully equipped galley and pantry

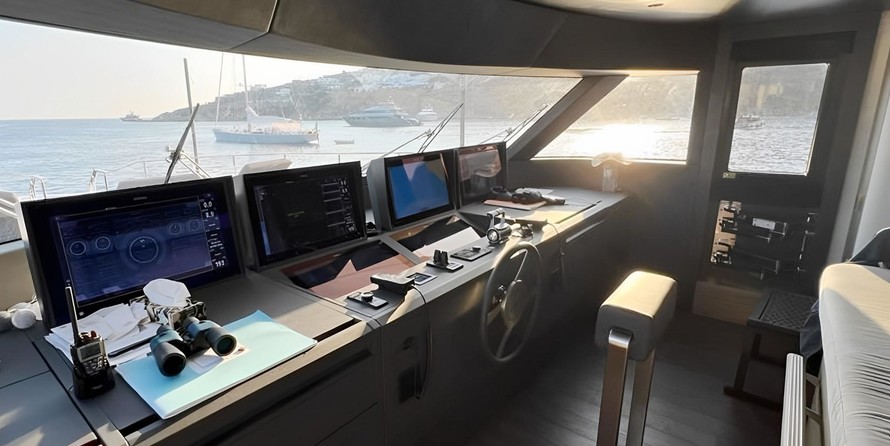

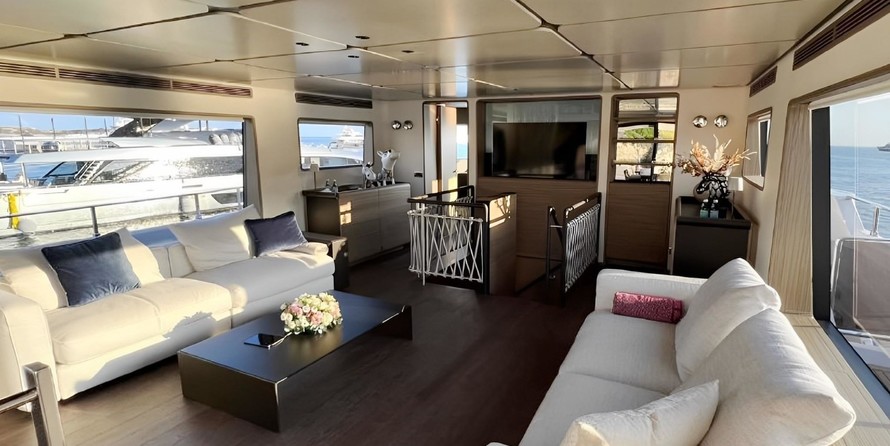

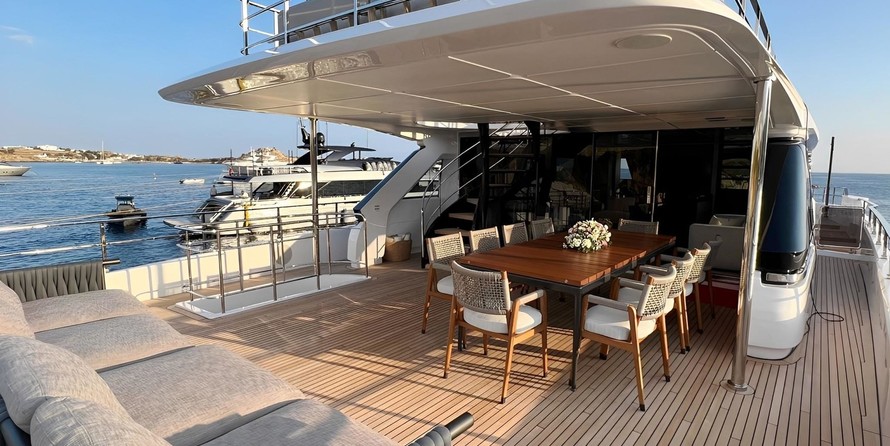

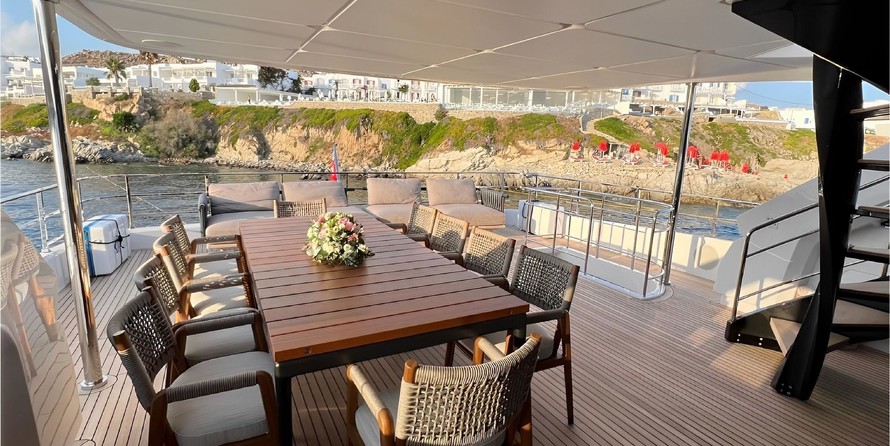

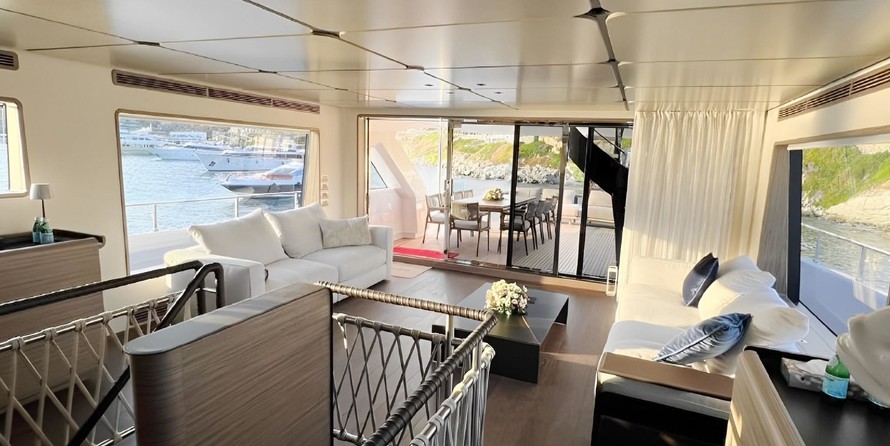

Upper deck with wheelhouse, saloon, exterior dining area
Independent AC controls system in every area
MAIN EQUIPMENT
Hydraulic bow thruster (40 Hp), double propeller
Hydraulic stern thruster (30 Hp), double propeller
Power-assisted hydraulic steering with emergency manoeuvring
Shaft line transmission with elastic thrust bearing between shaft and reduction gearbox
Silenced main engines exhausts
Stuffing box with dripless shaft seal, low maintenance
Stabilizers zero speed fins at anchor and underway
Gyroscopic SEAKEEPER stabilizers at anchor
ELECTRICAL EQUIPMENT
Electrical Circuits: 230V / 24V / 12V
Generators: 2 x 35 kW KOHLER 35EFKOZD 1-phase 230V - 50Hz @ 1500 RPM with soundproof casing
Generator Hours: Port 455 h; Starboard 495 h (Nov. 2022)
Frequency converter 50Hz
12V automatic battery charger (for genset battery bank)
12V gel battery dedicated to port genset starting
12V gel battery dedicated to stbd genset starting
230V electric sockets (inside the boat)
230V lighting system
230V distribution system AC 50Hz 3-phase + neutral, powered by the gensets or by the shore power 24V emergency lighting system
24V automatic battery charger (battery banks for main engines)
24V automatic battery charger (services batteries banks)
24V automatic battery charger for emergency batteries
24V automatic battery charger for radio batteries
24V DC distribution
24V DC distribution system supplied by service batteries
24V gel battery bank for emergency
24V gel battery bank for services
24V independent gel battery banks (2) for main engines
Automatic parallel system between genset with seamless transfer between genset and shore power
Cathodic protection with zinc anodes
Copper strip ground system
Dock connector plug (20m) 100A 230V 3 poles + ground reel with GLENDINNING (local and remote control)
Genset parallel battery banks breaker
Lighting protection system
Main electrical panel (in control room) and secondary electrical panels (internal areas)
Main engines parallel battery banks breaker
Manual batteries breaker (genset, emergency, radio)
Manual engine batteries breaker, and remote switch for service batteries
Shore power supply transformer 35 kVA
OPTIONS LIST
Engines 2 x MAN V8-1000 power 1000 mhp (735 kW) @ 2300 RPM standard
Stabilizers Zero Speed fins at anchor and underway standard
Gyro stabilizers at anchor
Version 5 Guest Cabins + 3 Crew Cabins standard
Pullman bed in the portside guest cabin
Sliding bed in the starboard side guest cabin
Hull colour Optical white standard
Custom interior furniture selected by Owner
Gross Tonnage <200 GT
Certification Design Category "A" 2013/53/EU Directive - RINA certifications modules B + F + Aa (sound emission)
MIELE galley appliances upgrade
Wine cooler under counter
Drawer fridge for bottles on the sun deck
Texan grill in sun deck upgrade
Ice maker in sun deck (with independent tank)
Professional icemaker in main deck pantry
Waste mincer in the galley sink
Washer and dryer MIELE Profess. upgrade
Stern thruster 30 Hp hydraulic double propeller
Treatment system for black water HAMANN
Centralized system for engine/inverters/generators oil change
Fuel oil filling station in garage for diesel tender
Active carbon filter
Water softener
Drinking water UV sterilizer
Watermaker: IDROMAR 500 l/h (duplex 250+250l/h) upgrade
Automatic battery charger on generators
Fuel oil filter ALFA LAVAL
Hand shower with removable pole (hot/cold fresh water)
Teak for the sofa on the superstructure at bow
Underwater lights - 10 in total
Stainless-steel handles on main deck cockpit (couple)
Stainless-steel handles on upper deck cockpit (couple)
Additional handrail for gangway
Bimini for dinette at bow (manual)
Bimini top with carbon fibre poles on sun deck aft
Fixed control station in the cockpit with cover
Anchor chain with 13mm diameter and 150m length
Courtesy lights and dimmers for exteriors
Dimmer lights for interiors
Floor teak covering with black caulking on sun deck and forward triangle area
Window with porthole in galley
Air Conditioning Super Tropical
Curtains: Electrical raising in main deck
Curtains: Electrical raising for lower deck (4 cabins)
Electrical raising of curtains in upper deck saloon
Decorative lights under furnitures in lower, main and upper decks
Decorative lighting strips
Bar cabinet in main deck cockpit
Air extraction in the lower deck cabins' bathrooms
Additional lighting in wardrobes of cabins
Lateral door on saloon portside - manual opening
Lateral door on saloon starboard side - manual opening
Electric aft door in upper deck saloon
Automatic opening aft glass door in main deck saloon
Super premium integrated bridge upgrade
FLIR camera night vision
Autoidentification system AIS SIMRAD TX-RX NAIS500
Super Premium Wi-Fi upgrade
Package Internet 5G PLATINUM
All-in-one remote audio-video control with Apple iPad
A/V Package domotic area A
A/V Package domotic area B
Package premium sound external areas - SONANCE 6,5"
A/V Package premium sound area A
Antenna TV SAT KVH HD8 with receiver in saloon and empty dome
TV 27" in the galley
TV SAMSUNG 55" in master cabin
TV 55” LCD/LED thin with up & down lift in upper deck saloon
TV 55” LCD/LED thin with electric raising device in ceiling of main deck saloon
Frame TV SAMSUNG in lower deck cabins upgrade

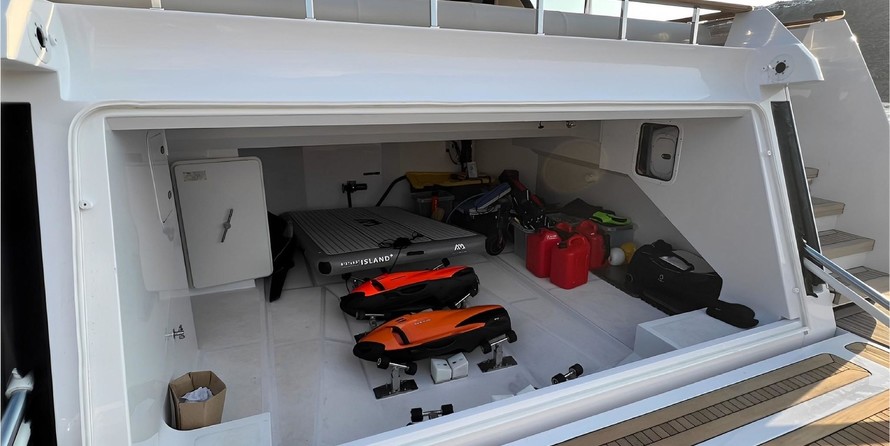

Aft garage ceiling electrohydraulic travel, for hauling and launching the jet ski (saddles included)
TENDER
WILLIAMS 435 TurboJet
Available on request.
Immediate.
5 Years on the hull, until March 2024 for the rest of the ship’s systems. Transferable warranties possible.
Prior appointment, please.
Berth place management possible on French or Italian Riviera as well as Spain (Mainland and Balearic Islands), Adriatic Sea, Croatia, Greece and Turkey.
These particulars are given in good faith as supplied to us but cannot be guaranteed and cannot be used for contracts

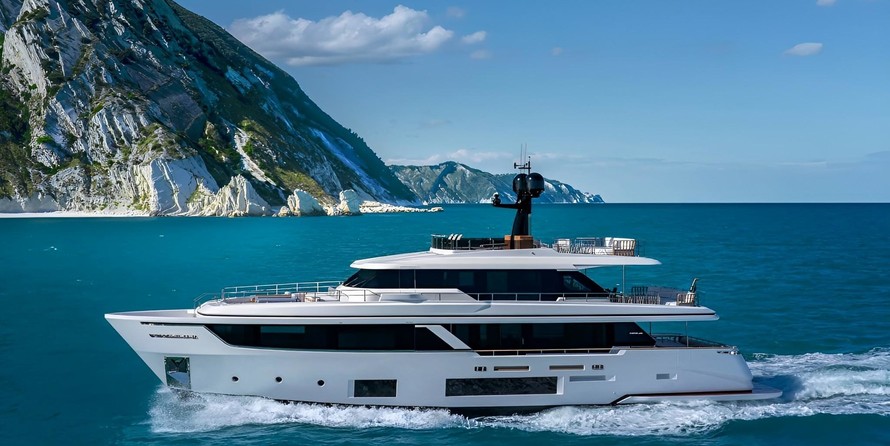

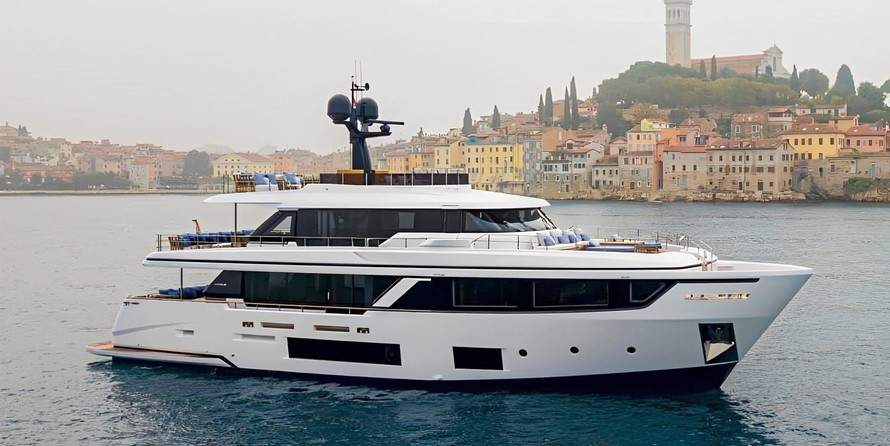

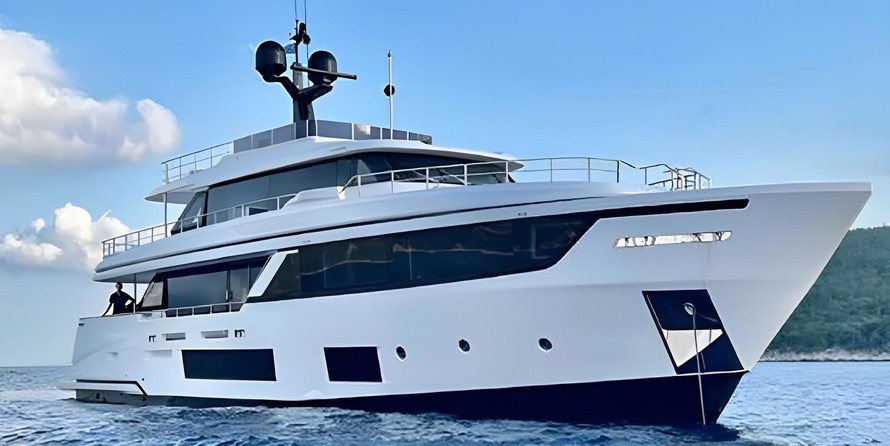

The 93’ 3” CUSTOM LINE NAVETTA 30 is one of the new models in the Custom Line displacement range that marries comfort and safety with personalisation and seaworthiness. Her ground-breaking design is bristling with the explosive energy of a true masterpiece, with a paradigm that defines the state of the art on a quest for absolute wellbeing for Owner and guests. At 28.43 m long and 7.31 m wide for a sizeable volume of 199 GT, the Navetta 30 is ambitious in size but rides the waves with elegance that speaks eloquently of liberty and grace. In this Tri-deck motor yacht, classic lines meet contemporary interior design with harmony and fluidity.
Conceived in a collaboration between Ferretti Group’s Product Strategy and Engineering teams, the CUSTOM LINE NAVETTA 30 is a displacement yacht of exceptional pedigree. She is the first Custom Line creation with external design by architect Filippo Salvetti and interior styling by architecture studio Antonio Citterio and Patricia Viel.

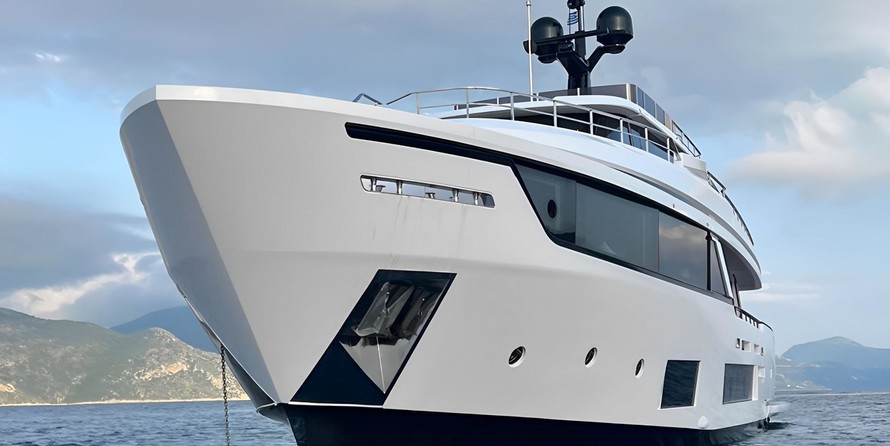

In the exterior design, the generous volumes balance beautifully with the exciting originality of the flowing, elegant lines. Their emphatic horizontal development lends the profile a decisive dynamic élan while maintaining the timeless classic feel. The hull lines extend this vigour to the bow, assuring enviable performance with enhanced fuel-efficiency. In addition, the upper deck adds an unmistakable harmony of design and the glorious large sundeck opens up to the endless sky.

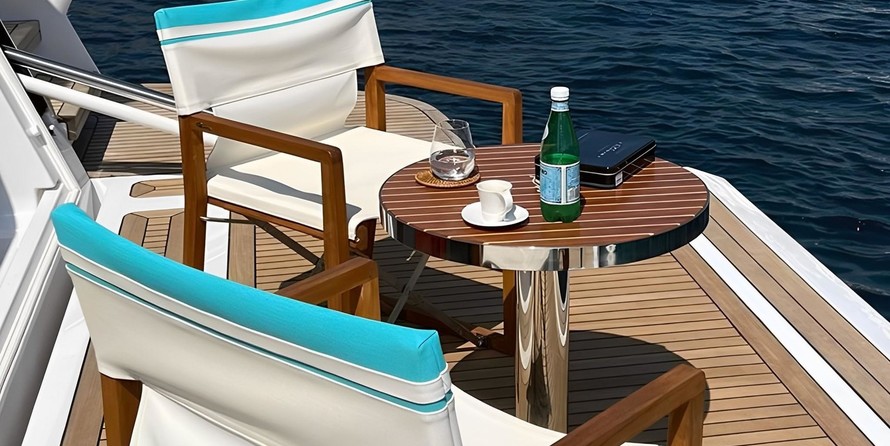

The CUSTOM LINE NAVETTA’s wide-body configuration offers 3 decks – a major achievement for a yacht in this segment. This masterpiece of nautical art vaunts generous external spaces that provide a haven for relaxation, contemplation and convivial good times. With large windows in the hull, over 2 metres of deck headroom and ample areas at both stern and bow, the Navetta 30 embraces the horizon with a panoramic open vista stretching in all directions. The main deck and the lower deck with the VIP & twin cabins become spaces for savouring the sensation of the sea.

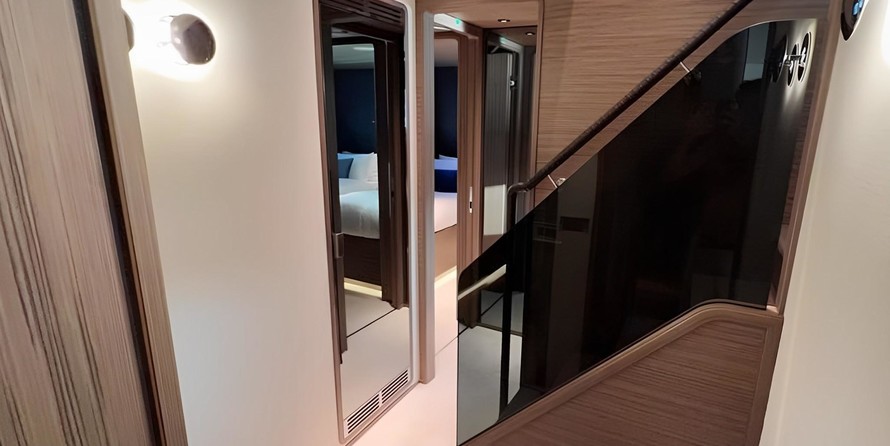

The interiors have been designed to play off the lines of the hull. The style innovations aboard the Navetta 30 include the ingenious accommodation solutions, allowing the interior and exterior to be experienced like complementary layouts that flow together in a coherent, well-structured continuum. Everything is designed to maximise the usable space and make the areas as amenity-rich as possible.
The interior style provides a fresh, modern take on the traditional nautical archetypes. Here too, the classical signature remains in the curved lines, the window frames and the use of teak but with a novel contemporary twist. The aesthetic becomes dynamic, with new carbon details, sophisticated lacquering, striped fabrics in ultramarine, and customised textures with quartz powder coatings on fibreglass. It all contributes to a sporty-chic feel infused with the harmonious elegance of a great classic boat.
The furnishing solutions – exclusives to this yacht – are an integral part of her aesthetic style. They were tailor-made from natural leather and solid or multi-layer wood using sophisticated artisanal techniques.

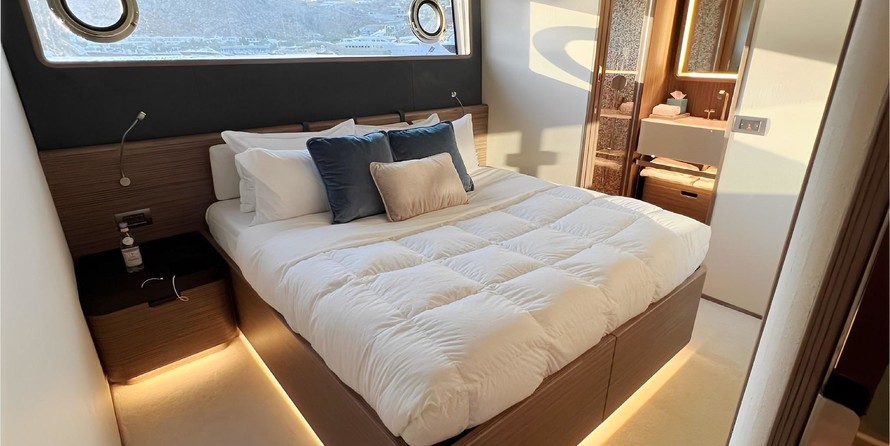

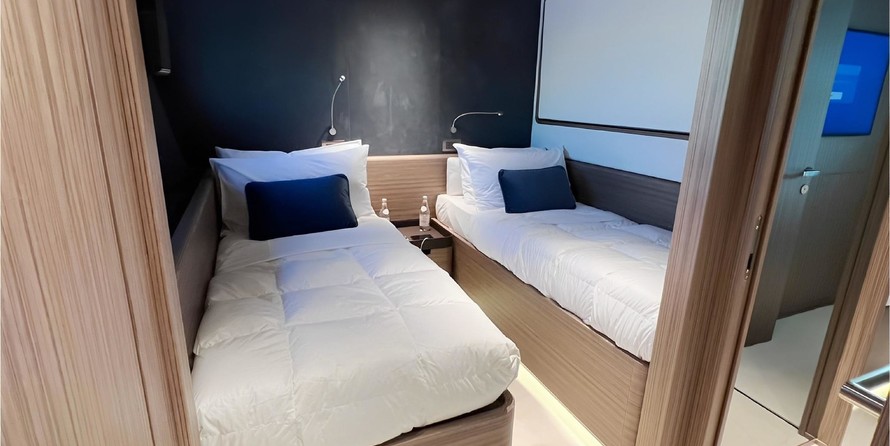

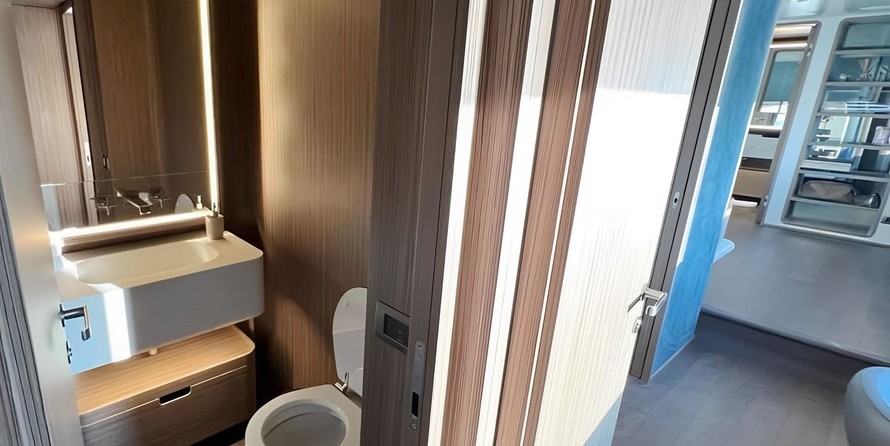

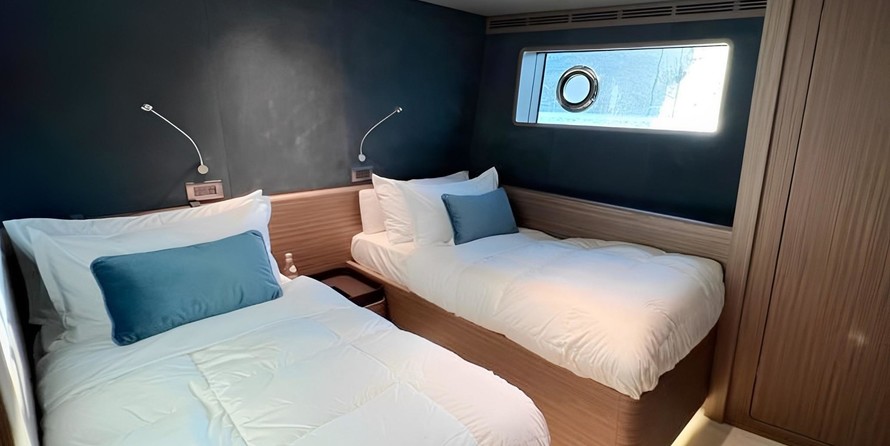

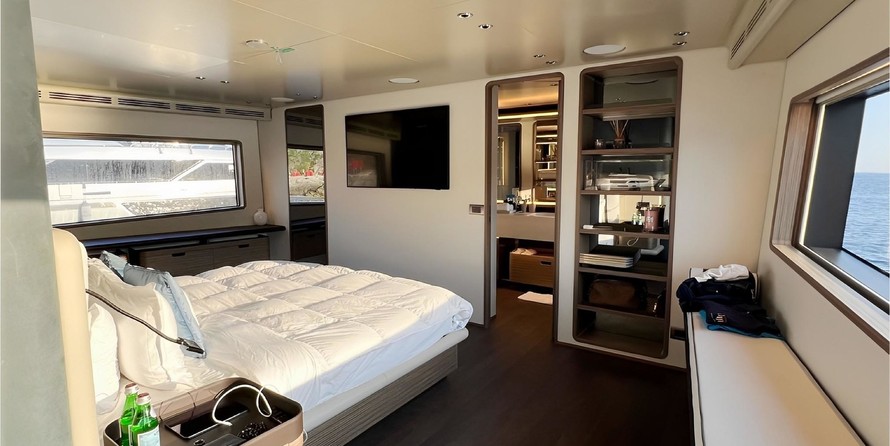

Up to 11 guests are comfortably accommodated in 5 en-suite staterooms on board this CUSTOM LINE NAVETTA 30 for sale, comprising an on-deck master suite, 2 VIPs and 2 doubles on the lower deck (these 2 cabins present flexible accommodation solutions with sliding beds and additional Pullman). The yacht also has accommodation for 5 crew members.
Innovation is the defining theme on board the Navetta 30. The entire design is rated category CE, class A, with low consumption and best-in-segment performance. But technology is also about cruising pleasure: this CUSTOM LINE NAVETTA 30 features both zero speed stabilising fins and optional Seakeepers for consummate comfort while at anchor as well as unrivalled soundproofing throughout.
She is powered by twin 1000 Hp MAN Diesel engines, which give her a cruising speed of 13 knots and a top speed of 15 knots. While cruising at economical speed of 10 knots, this CUSTOM LINE NAVETTA 30 can reach an impressive range of 2000 nautical miles.

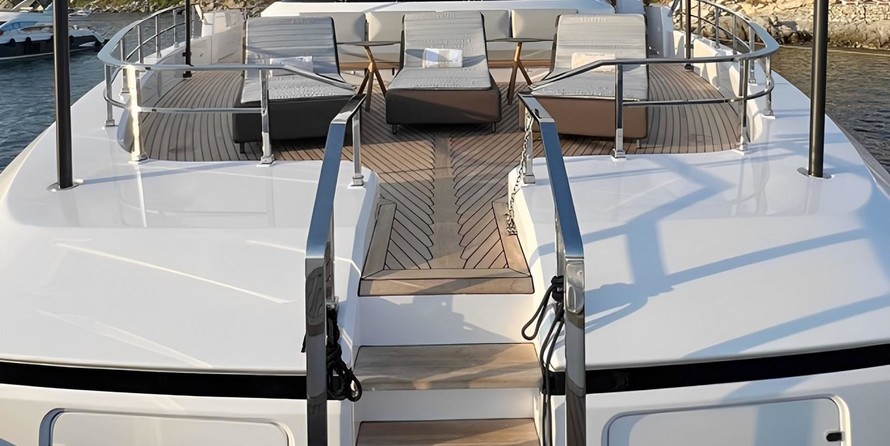

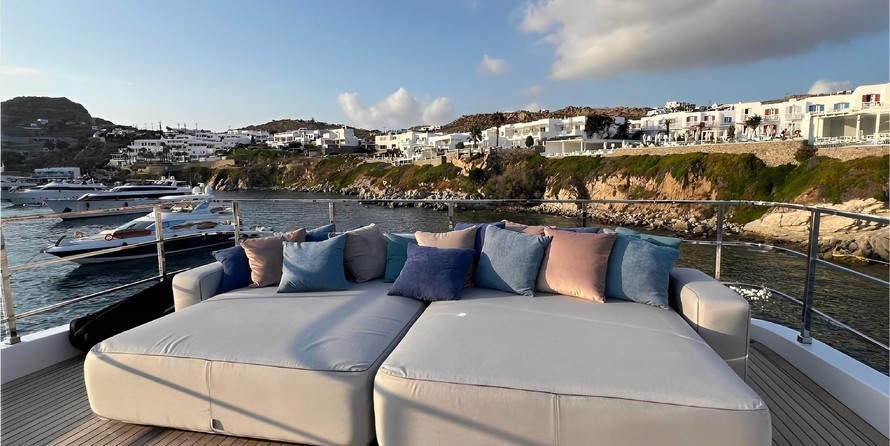

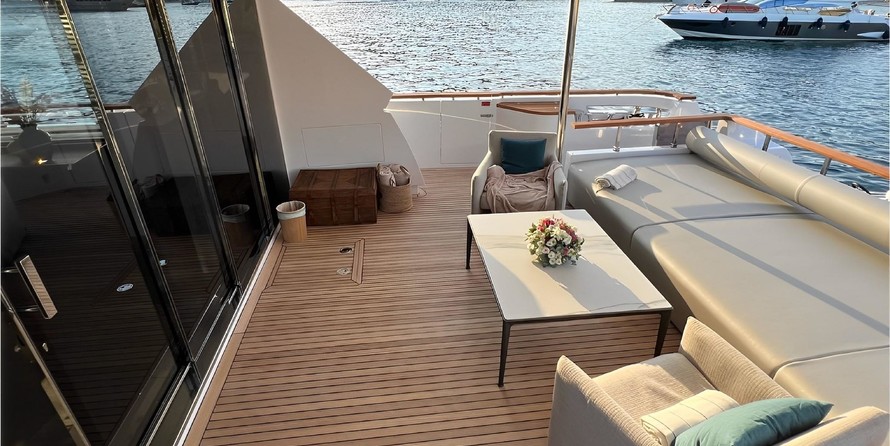

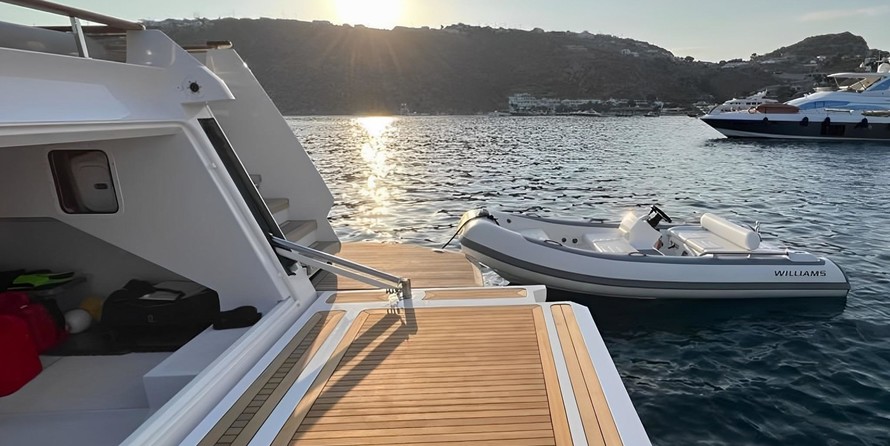

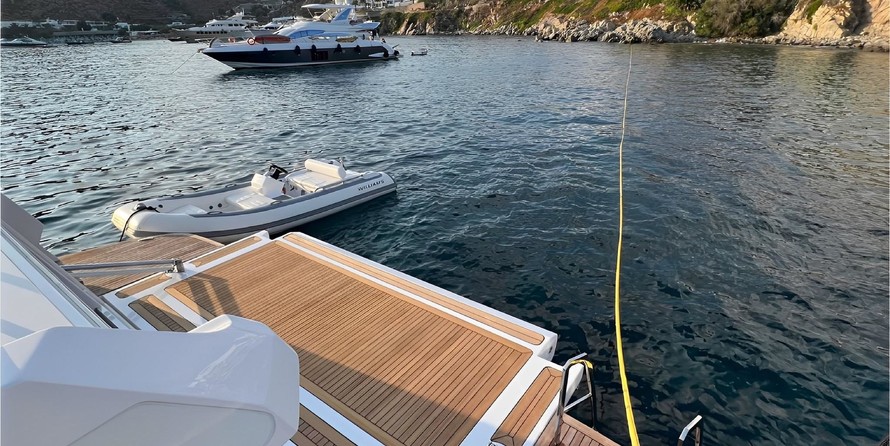

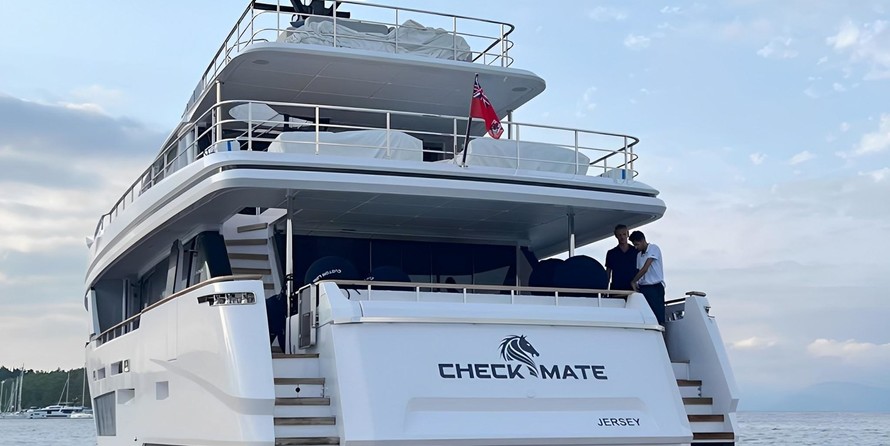

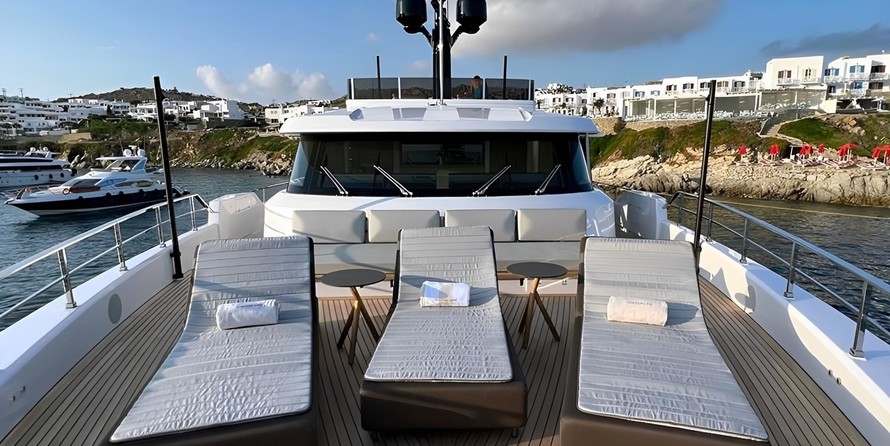

Finally, the vessel features a stern beach club with hydraulic swim platform, bow deck lounging area and garage for tender and toys.
